Featuring both adhesion and cutting with a single unit

Sealing width 1.6mm, length of 200mm, approval thickness total 0.2mm

-HAKKO FV-801 is applied sealing length of 350mm.

-HAKKO FV-803 is compact and available for max. thickness 0.4mm.

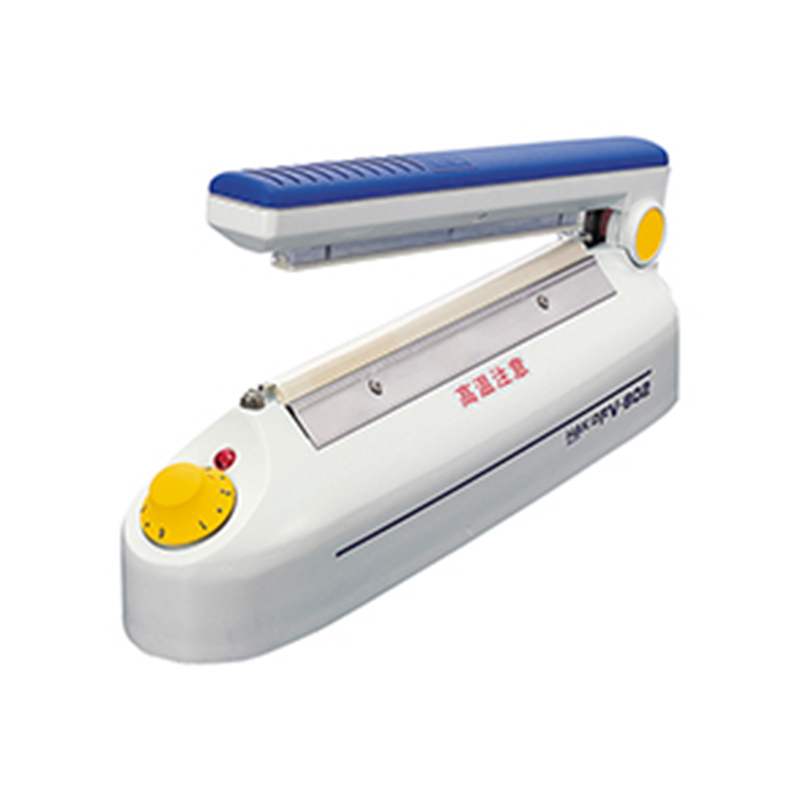

HAKKO FV-802 can be used for adhesion or cutting depending on the application.

Applicable to various fields

Perfect sealing is enabled by a simple operation.

Usage/Application

Operating Procedure

Set the heating time adjusting knob according to the material and thickness of the package film, and adjust the sealing position.

Push down the handle.For approximately 2 seconds, recommendable knob position is 6.

Cutting

After the red pilot lamp turns off, wait for a cooling time of 1 to 2 seconds and then raise the handle.

Operating Procedure

*The above thickness indicates total thickness of two or more films.
*The above table lists standard values. The thickness varies depending on the material and voltage. Select the optimum setting.
