High-powered 140W soldering iron with high heat capacity

Composite-type soldering iron which has an iron tip with a built-in heater.Features the versatility to enable the soldering of a variety of components ranging from large scale components such as power supply boards, heat sinks, shield cases and coaxial cables, which require a high amount of heat, to micro components mounted on multilayer boards.

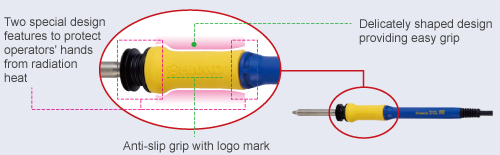

While providing high heat capacity, the grip is thin and easy to hold, exactly as the FM-2027,and provides two design features that protect users' hands from high radiation heat.

16 types of tips are available(T22 Series)

This lineup enables soldering of components of various sizes ranging from micro to large components.

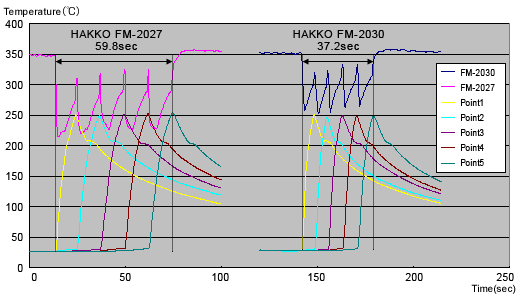

Working characteristics comparison graph

High-powered soldering iron also contributes to reductions in production time.

Measurement condition

Combined use with HAKKO FM-206 with a large LCD panel

High heat capacity soldering iron intended for exclusive use with the compact multi-rework station, HAKKO FM-206 that enables simultaneous use of three handpieces To work with this handpiece(HAKKO FM-2030), connect it to the Channel 2 or 3 receptacle on HAKKO FM-206
