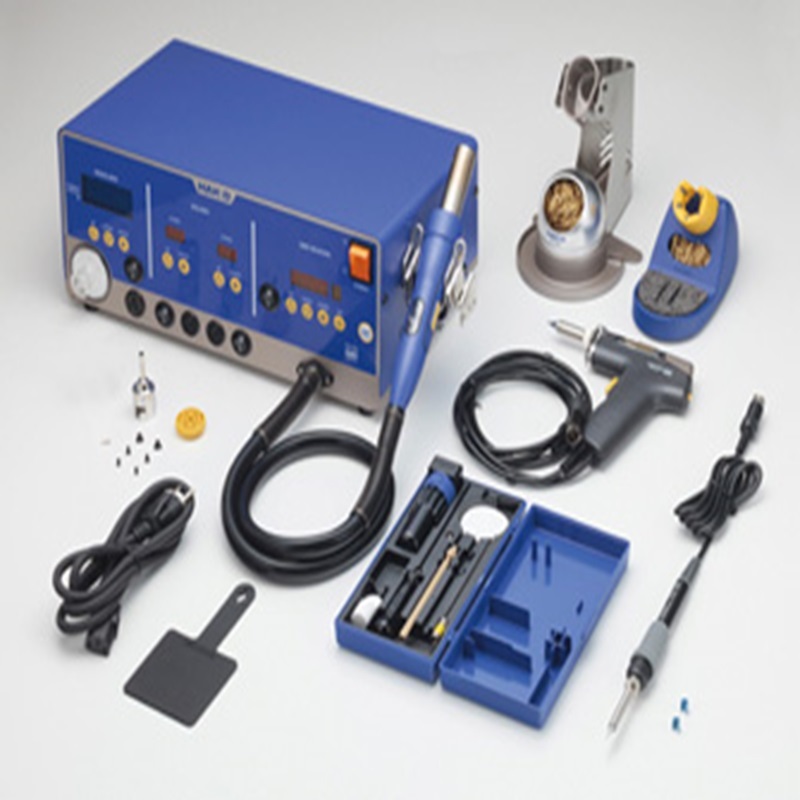

🚩เครื่องบัดกรี ถอดอุปกรณ์บัดกรี HAKKO FR-702 (220V)
ประกอบด้วย
🔸FR-702 1 ชุด

🔹HAKKO FR-702
➪ ชุดเครื่องหัวแร้งบัดกรีและถอดอุปกรณ์บัดกรี แบบครบวงจร เหมาะกับงานทุกรูปแบบ
➪ รุ่น : FR-702
➪ กำลังไฟ : 1,030W

* Station
🔸Dimensions 370(W)×150(H)×220(D)mm
🔹Weight 9kg

* Station (Soldering)
🔸Output voltage AC 26V
🔹Temperature range 50 to 480ºC
🔸Temperature stability ±1ºC at idle temperature (When set to 200 to 480ºC)

* Station (Desoldering)
🔸Output voltage AC 24V
🔹Vacuum generator Vacuum pump, double cylinder type
🔸Vacuum pressure 80kPa (600mmHg)
🔹Suction flow 15L/min.
🔸Temperature range 330 to 450ºC
🔹Temperature stability ±5ºC at idle temperature

Station (Hot air)
🔸Power consumption 30W
🔹Air flow 1 to 9 (5 to 115L/min.)L/min.
🔸Temperature range 50 to 600ºC

* Soldering iron
🔸Power consumption 65W (26V)
🔹Tip to ground resistance <2Ω
🔸Tip to ground potential <2mV
🔹Heating element Ceramic heater
🔸Standard nozzle Shape-B (No.T18-B)
🔹Cord length 1.2m
🔸Total length 222mm (with B tip)
🔹Weight 52g (with B tip)

Desoldering Tool
🔸Power consumption 140W (24V)
🔹Nozzle to ground resistance <2Ω
🔸Nozzle to ground potential <2mV
🔹Heating element Composite heater
🔸Standard nozzle Φ1.0mm S type (No.N61-05)
🔹Cord length 1.2m
🔸Total length 168mm (with Φ1.0mm S type nozzle)
🔹Weight 170g (with Φ1.0mm S type nozzle)
Handpiece (Hot air)
🔸Power consumption 670W
🔹Nozzle to ground resistance 250mm
🔸Nozzle to ground potential 180g
* The suction flow is measured at the filter case suction port of station.
* Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
* Total length and weight (w/o cord, hose)
