Release button for the electromagnetic brake for Z-axis
Allocated on Z axis left side
Dimensions
600 (W) × 910 (H) × 650 (D) mm
Weight
50 kg
The repeatable position accuracy for X/Y/Z/θ axes is limited to the case where the temperature of the main body is constant. The absolute accuracy is not guaranteed.
FU-601 Soldering iron unit
Power consumption
300 W
Output
AC 29 V
Temperature range
50 to 500℃
Temperature stability
±5℃ at idle temperature
Dimensions
145 (W) × 107 (H) × 211 (D) mm
Weight
4 kg
FU-6002 Soldering iron unit (L-type)
Power consumption
260 W (29 V)
Tip to ground resistance
＜2 Ω
Tip to ground potential
＜2 mV
Cord length
5 m
Total length
168 mm (with TX2-XD4 tip, dimension can be adjusted within a ±5 mm range.)
Weight
134 g (with TX2-XD4 tip) 173 g (with TX2-XD4 tip and iron unit fixing assembly)
Total length and weight are measured without cord.
Solder feed setting range
Number of solder feed programs
250 conditions (max.)
Solder feed length
0.1 to 99.9 mm
Solder feed speed
0.1 to 99.9 mm/sec.
Solder back feed length
0 to 20.0 mm
Solder back feed speed
0 to 99.9 mm
Heating time
0.1 to 9.9 sec.
All items can be set from 0 for the secondary and tertiary soldering. If setting "0" or "blank" for any feed speed, feed amount, or heating time for secondary and tertiary soldering, the following steps can be skipped
Dimensions
Packing List
Model No.
Packing List

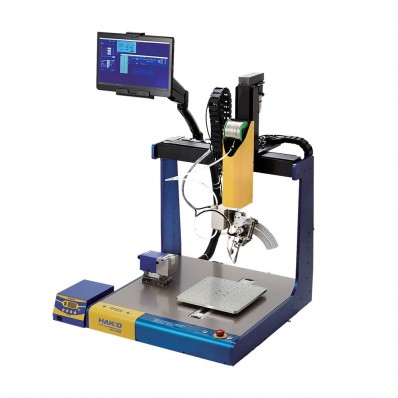

HU-200
Robot
Soldering unit FU-601
Tablet PC (with a touch pen)
Attachment holder (for tablet PC)
Display arm (for tablet PC)
Soldering unit mount
Soldering unit fixture base
Feeder unit type L
Feeder cable 4m
Tube units (0.3 to 1.0 mm dia, 1.2 to 1.6 mm dia)
Tube units B (0.3 mm, 0.5 to 1.0 mm dia, 1.2 to 1.6 mm dia)
Solder reel support shaft
Cleaner CX1003
Cleaner base
I/O cable (for Cleaner)
USB cable
Relay cord
Power cord
Instruction manual
Please purchase the solder feed pulley unit and solder feed guide set for the solder diameter you use with the HU-200, since they are not included in the unit. Setup option
In an HU-200, no soldering tip is included. Please purchase your desired soldering tips separately. TX1 series (140 W) TX2 series (300 W)
Set Up Option
Part No.
Name
Specifications
BX1000
Solder feed pulley unit
0.3 mm dia.
BX1001
Solder feed pulley unit
0.5 mm dia.
BX1002
Solder feed pulley unit
0.6 mm dia.
BX1003
Solder feed pulley unit
0.8 mm dia.
BX1004
Solder feed pulley unit
1.0 mm dia.
BX1005
Solder feed pulley unit
1.2 mm dia.
BX1006
Solder feed pulley unit
1.6 mm dia.
BX1046
Solder feed guide set
0.3 mm dia.
For HU-200
BX1047
Solder feed guide set
0.5 to 1.0 mm dia.
For HU-200
BX1048
Solder feed guide set
1.2 to 1.6 mm dia.
For HU-200
BX1010
Fluoroplastic tube
0.3 mm dia., Qty: 10
For solder feed guide set
BX1011
Fluoroplastic tube
0.6 mm dia., Qty: 10
For solder feed guide set
BX1012
Fluoroplastic tube
0.8 mm dia., Qty: 10
For solder feed guide set
BX1013
Fluoroplastic tube
1.0 mm dia., Qty: 10
For solder feed guide set
BX1014
Fluoroplastic tube
1.2 mm dia., Qty: 10
For solder feed guide set
BX1015
Fluoroplastic tube
1.6 mm dia., Qty: 10
For solder feed guide set
Soldering Tip/Nozzle
In the soldering unit (FU-601) of HU-200, no soldering tip is included. Please purchase your desired soldering tip separately. TX1 series (140 W) TX2 series (300 W)
Adapter assembly and nozzle assembly are required to perform N2 soldering.
