- - 670W high power and large volume hot air improves work efficiency
- - Vacuum pickup function for easy and safe removal of components
- - Possible to make a simple thermal profile by chain presets function
Specifications
| Model No. | FR-810B |
|---|---|
| Power consumption | AC100 V : 700 W AC110 V : 840 W AC120 V : 820 W AC220 V : 1,100 W AC230 V : 1,200 W AC240 V : 1,300 W |
| Temperature range | 50 to 600℃ |
Station
| Power consumption | 30 W |
|---|---|
| Air flow | 1 to 9 (5 to 115 L/min.) |
| Dimensions | 160 (W) × 145 (H) × 220 (D)mm |
| Weight | 1.5 kg |
Handpiece (Hot air)
| Power consumption | AC100 V : 670 W AC110 V : 810 W AC120 V : 790 W AC220 V : 1,070 W AC230 V : 1,170 W AC240 V : 1,270 W |
|---|---|
| Standard nozzle | 4 mm dia. (No. N51-02) |
| Total length | 250 mm |
| Weight | 180 g |
- Total length and weight for handpiece are measured without cord and standard nozzle.
- Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.

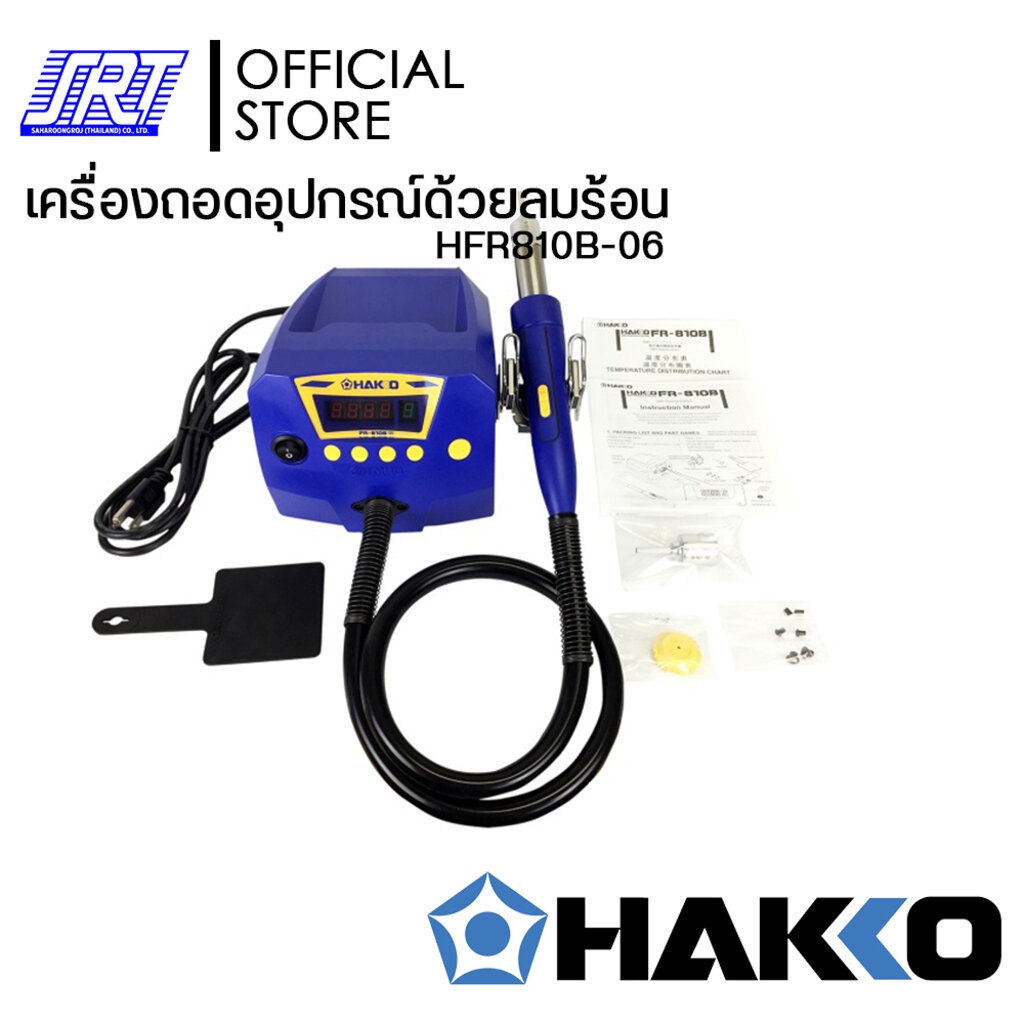

Packing List
| Model No. | Packing List | |
|---|---|---|
| FR-810B |  |
|
N51 Series (quick-change type)
Nozzle Set
N51-50 Nozzle set
N51-01, N51-03, N51-04 & N51-05
BGA
BGA/4mm x 4mm
BGA/6mm x 6mm
BGA/8mm x 8mm
BGA/10mm x 10mm
BGA/12mm x 12mm
BGA/14mm x 14mm
BGA/15mm x 15mm
BGA/17mm x 17mm
BGA/18mm x 18mm
BGA/20mm x 20mm
BGA/22mm x 22mm
BGA/24mm x 24mm
BGA/27mm x 27mm
BGA/29mm x 29mm
BGA/35mm x 35mm
BGA/38mm x 38mm
BGA/40mm x 40mm
Single
Single/2.5mm dia.
Vacuum function inoperative nozzle
Single/4mm dia.
Single/5.5mm dia.
Single/7mm dia.
Bent Single
Bent Single
Vacuum function inoperative nozzle
Hot Air Series (conventional type)
QFP
A1125B Nozzle
QFP/10mm x 10mm
A1262B Nozzle
QFP/12mm x 12mm
A1126B Nozzle
QFP/14mm x 14mm
A1128B Nozzle
QFP/14mm x 20mm
A1127B Nozzle
QFP/17.5mm x 17.5mm
A1261B Nozzle
QFP/20mm x 20mm
A1129B Nozzle
QFP/28mm x 28mm
A1263B Nozzle
QFP/28mm x 40mm
A1265B Nozzle
QFP/32mm x 32mm
A1203B Nozzle
QFP/35mm x 35mm
A1264B Nozzle
QFP/40mm x 40mm
A1215B Nozzle
QFP/42.5mm x 42.5mm
A1180B Nozzle
BQFP/17mm x 17mm
A1181B Nozzle
BQFP/19mm x 19mm
A1182B Nozzle
BQFP/24mm x 24mm
SOP
A1131 Nozzle
SOP/4.4mm x 10mm
Vacuum function inoperative nozzle
A1132 Nozzle
SOP/5.6mm x 13mm
Vacuum function inoperative nozzle
A1133 Nozzle
SOP/7.5mm x 15mm
Vacuum function inoperative nozzle
A1134 Nozzle
SOP/7.5mm x 18m
Vacuum function inoperative nozzle
A1258B Nozzle
SOP/7.6mm x 12.7mm
A1260B Nozzle
SOP/8.6mm x 18mm
A1257B Nozzle
SOP/11mm x 21mm
A1259B Nozzle
SOP/13mm x 28mm
TSOL
A1185B Nozzle
TSOL/13mm x 10mm
A1186B Nozzle
TSOL/18mm x 10mm
A1187B Nozzle
TSOL/18.5mm x 8mm
PLCC
A1188B Nozzle
PLCC/9mm x 9mm (20pin)
A1140B Nozzle
PLCC/11.5mm x 11,5mm (28pin)
A1141B Nozzle
PLCC/11.5mm x 14mm (32pin)
A1139B Nozzle
PLCC/12.5mm x 7.3mm (18pin)
A1135B Nozzle
PLCC/17.5mm x 17.5mm (44pin)
A1136B Nozzle
PLCC/20mm x 20mm (52pin)
A1137B Nozzle
PLCC/25mm x 25mm (68pin)
A1138B Nozzle
PLCC/30mm x 30mm (84pin)
A1189B Nozzle
PLCC/34mm x 34mm (100pin)
SOJ
A1214B Nozzle
SOJ/10mm x 26mm
A1183 Nozzle
SOJ/15mm x 8mm
Vacuum function inoperative nozzle
A1184B Nozzle
SOJ/18mm x 8mm
BGA
A1470 Nozzle
BGA/8mm x 8mm
A1471 Nozzle
BGA/12mm x 12mm
A1472 Nozzle
BGA/13mm x 13mm
A1473 Nozzle
BGA/15mm x 15mm
A1474 Nozzle
BGA/18mm x 18mm
A1475 Nozzle
BGA/27mm x 27mm
A1476 Nozzle
BGA/35mm x 35mm
A1477 Nozzle
BGA/38mm x 38mm
A1478 Nozzle
BGA/40mm x 40mm
Single
A1124B Nozzle
Single/2.5mm dia.
Vacuum function inoperative nozzle
A1130 Nozzle
Single/4.4mm dia.
Vacuum function inoperative nozzle
A1142B Nozzle
Bent single/1.5mm dia. x 3mm
Vacuum function inoperative nozzle
A1190 Nozzle
Dual single/2.5mm dia. x 9mm pitch
Vacuum function inoperative nozzle
A1325 Nozzle
Dual single/1.5mm dia. x 5 to 10mm pitch
Vacuum function inoperative nozzle
SIP
A1191 Nozzle
SIP/25L
Vacuum function inoperative nozzle
A1192 Nozzle
SIP/50L
Vacuum function inoperative nozzle
Replacement Parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
A1438 | Pad | 7.6mm dia., Qty:5
|
 |
A1439 | Pad | 5mm dia., Qty: 5
|
 |
A1520 | Pad | 3mm dia., Qty:5
|
 |
B3023 | Vacuum pipe control knob (L) | With screw
|
 |
B5048 | Iron holder |
|
 |
B2300 | Heat resistant pad |
|
 |
A5022 | Heating element | 100-110V
|
 |
A5023 | Heating element | 120V, 127V
|
 |
A5024 | Heating element | 220-240V
|
 |
B5045 | Pipe |
|
 |
B5049 | Mica | With heater protection sleeve |
Option
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
B5126 | Air guard assembly | With air guard fixing bracket
|
 |
C5027 | Board holder |
|
 |
B5098 | Board clip |
|
 |
B5136 | Board support unit |
|
 |
B5137 | Rubber foot |
|
 |
C5028 | Grip fixture M | With hexagon wrench, o-ring and tray
|
 |
C5029 | Grip fixture L | With hexagon wrench and o-ring
|
 |
A5027 | Slide gear |
|
 |
B5138 | Positioning unit |
|
 |
B5139 | Tray |
|
 |
B5140 | Tray assembly |
|
High power and large air volume
Further evolution of SMD rework station
High power and large volume hot air for quick removal of components
FR-810B is the tool that can provide high power hot air and high volume airflow to rework on P.W.B. with high heat capacity.
Improving work efficiency
The high volume airflow and high output of FR-810B make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.
- The comparison of the time for the temperature of the solder joint of the component on the ceramic board to be heated to 200°C under the maximum set temperature and maximum set airflow of the hot air stations.
- Single nozzles with an approximately 4mm diameter were used.
Improvements in FR-810B
On top of the features of FR-810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to FR-810B.
The 2 new functions make it possible to remove a component without damaging PWB.
New type of nozzles for improvement of temperature characteristics
The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle)
Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.
Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible.
Use of the conventional HAKKO nozzles
Align the projection part, attach the conventional nozzle to the heater pipe.
- The heater pipe of FR-810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adapter on the heater pipe that was included in your purchased FR-810 as one of standard accessories. Click here for details.
Simple nozzle removal and easy maintenance
Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.
Quick-change N51 nozzles
Simple tool-free removal and attachment.
Simple heater replacement
Simply remove four screws to replace heater.
Timer function
Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.
Chain presets function for making a simple thermal profile
The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.
Auto sleep and auto shutoff functions
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically. If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.
With the use of grip fixture, board holder and bottom heater, work conditions can be controlled even more strictly.
A low cost rework system can be assembled with grip fixture, board holder and bottom heater.
-
Grip Fixture M
Recommended if a bottom heater is not required or in case of use of a bottom heater other than the dedicated model for FR-811.
-
Board Holder
Makes it easy to set and remove a PWB and to make fine adjustments after setting.
-
Board Clip
Accepts even irregular-shaped PWB.
-
Board Support Unit
Supports PWB from underneath to minimize warping.
