Model No.	Packing List

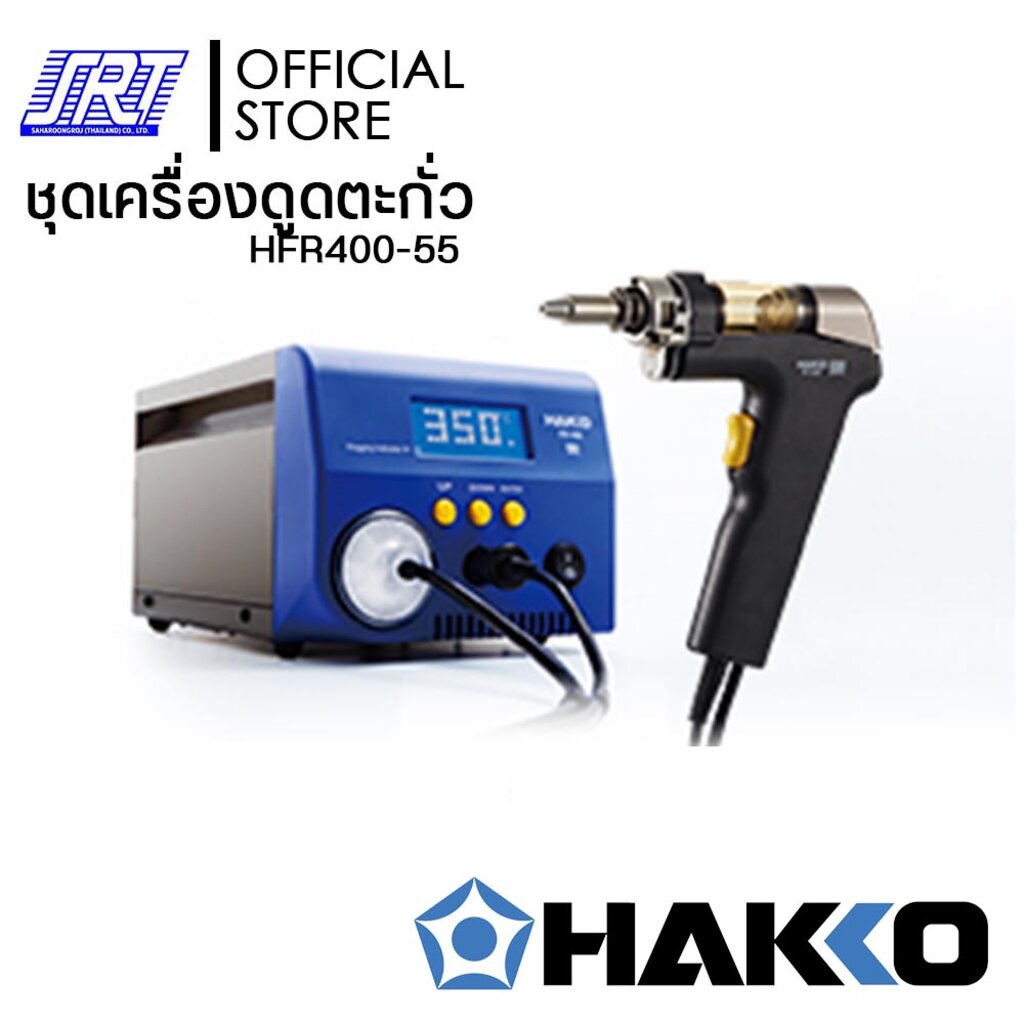

FR-400(w/FR-4003)		Station Handpiece (FR-4003) Iron holder (FH-400, with cleaning wire) Tool box (Cleaning pin for 1.0 mm dia., Cleaning pin for heater, Cleaning drill for 1.0 mm dia., Nozzle wrench, Filter [qty2], Ceramic paper filter [qty 4]) Power cord Instruction manual

300W tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.

300W tremendous power makes incredible heating.

Secure Desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

Reduction of solder clogging

Improved heating ability and ACF* ensure suctioned solder be carried to filter pipe and reduce solder clogging.

• ACF (Anti Clogging Function) is a function to keep pump running for a certain number of seconds after releasing trigger.

Selecting the right nozzle for your workpiece is very important for quality of desoldering !

It is important to heat a land of PWB and a component lead with a nozzle at the same time when desoldering.
Selection of the right nozzle shape is critical to ensuring the quality of work. Inappropriate nozzles can decrease work efficiency and damage PWB.

The nozzle lineup for FR-400 covers a variety of desoldering works, such as large DIA leads and flat type terminals.

• Large nozzles for 2 mm or larger DIA lead



  Nozzle in the photo is N60-06

• Oval shape nozzles for flat type terminals



  Nozzle in the photo is N60-09

Click here for more information about nozzles of N60 series.

Quick nozzle replacement with special tool

Nozzle Quick Changer compatible handle (FR-4003) enables one-action nozzle replacement

Improvement in maintainability

Easy heater replacement

Remove 3 screws to replace heating element

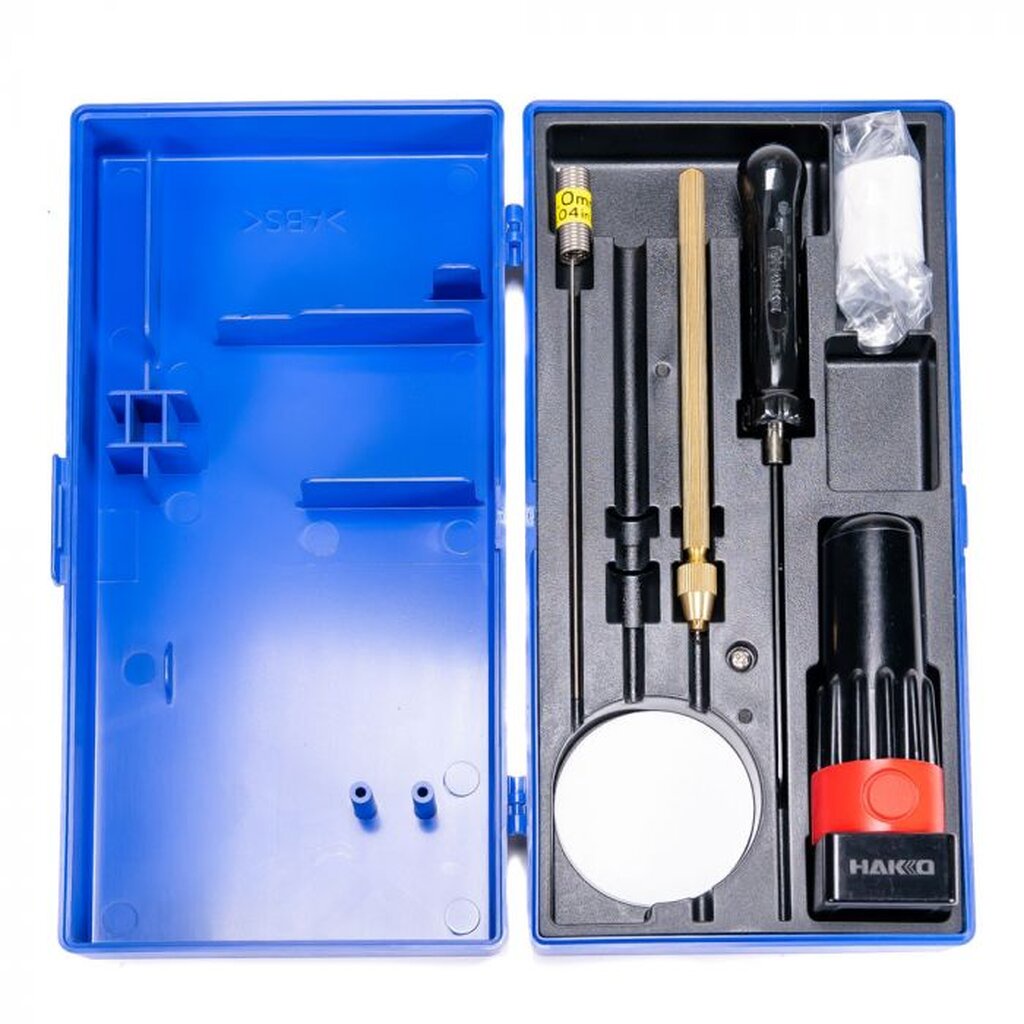

Tool box for maintenance kit

A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

Featuring new filter pipe 3 times larger than the previous model

The new filter pipe is 3 times larger than the previous model and applicable to operation on large components. This is not disposal type and for repeatable use.

Larger filer and more transparency

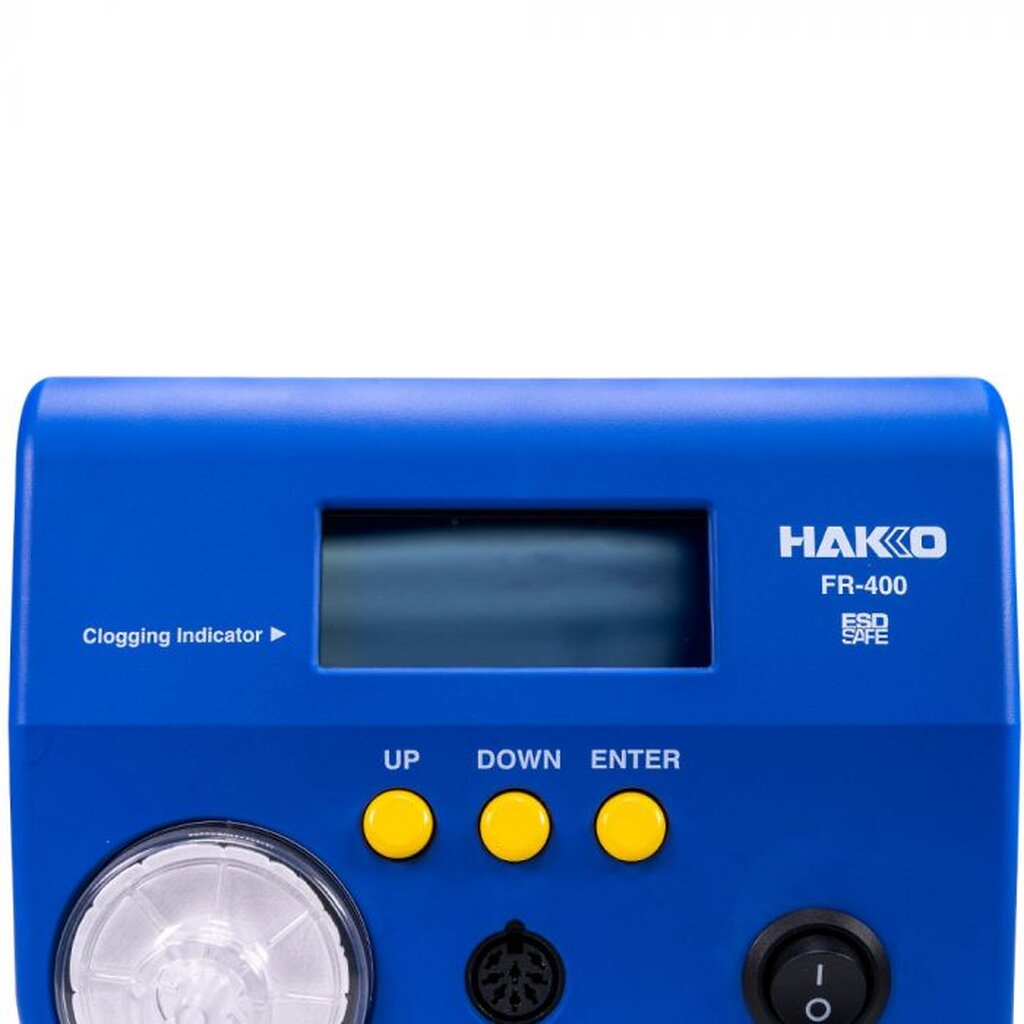

When desoldering, flux is also suctioned. Flux can cause degradation of suction performance if it enters inside the pump. To avoid the degradation, filter is attached on the front panel. The new filter is larger than the previous type to enhance greater adsorption property. Also the transparent filter cover makes it easy to check filter condition.
