• Total length and weight are measured without cord.

Packing List

Model No.	Packing List
FX-601		FX-601 Lock key Instruction manual

Replacement Parts

	Part No.	Name	Specifications
	A1600	Heating element	100-120V
	A1601	Heating element	220-240V
	B3720	Enclosure pipe	With nut
	B3706	Fixing pipe
	B3694	Knob	With screw
	B3707	Lock key

Soldering Tip/Nozzle

Optimal for soldering work where a high amount of heat is required.

Suitable to solder chassis,large connector,transformer.

Superior heat conductivity

T19 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity.
Use these soldering tips to achieve great heat recovery without increasing power consumption.

Test criteria

Compact and light weight

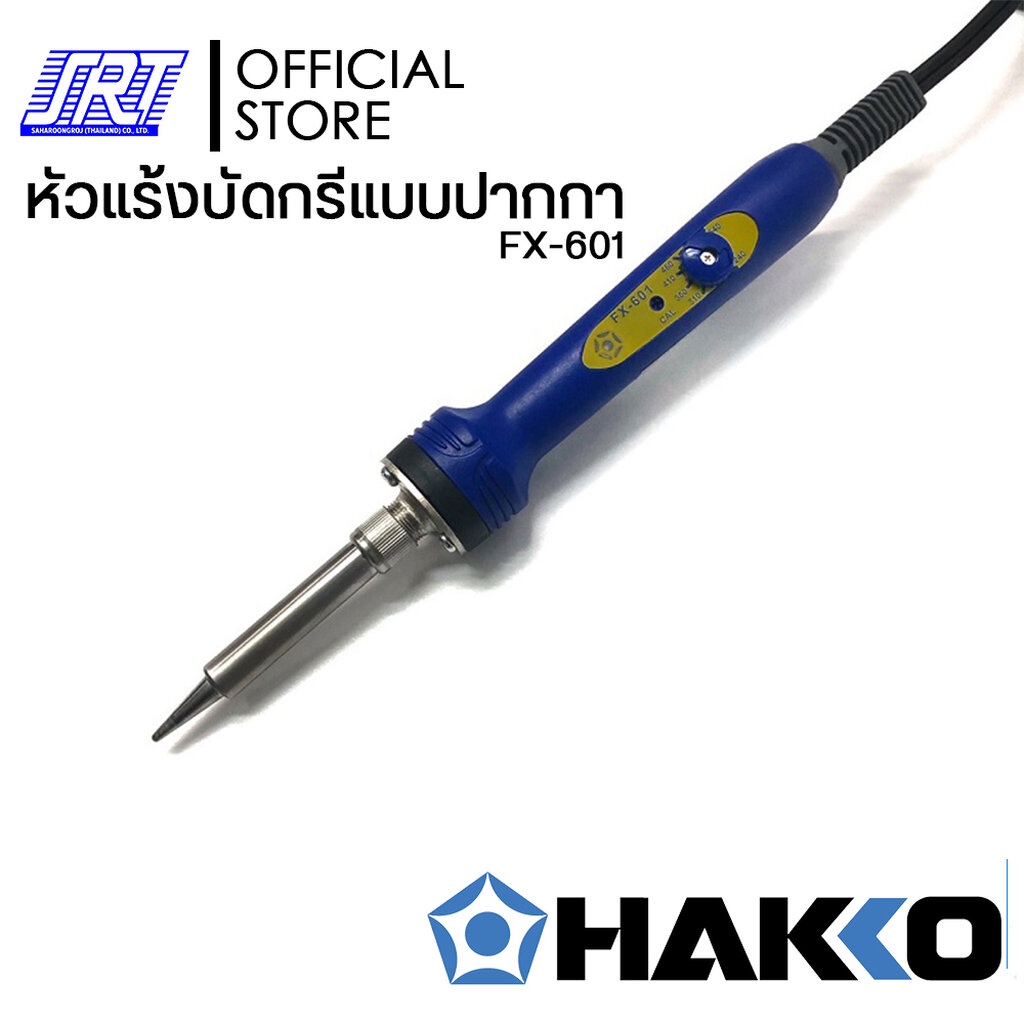

FX-601 has excellent heat recovery but is compact, light weight and well-balanced.
Comparing with the conventional heavy duty iron, FX-601 is easy and simple to handle.

FX-601 and HAKKO 456

LED informs you when the set temperature has been reached.

Turn CAL to have more accurate temperature

Adjust the temperature easily with the control knob

Features a temperature controller built into the grip.
Easily adjust the temperature with a simple turn of the knob.

• Accurate temperature control performed even outside the scale.

Change parts to convert your FX-601 into an FX-600 that's optimal for soldering electronic parts!

Reduce costs by converting to either model using interchangeable parts (enclosure pipe with nut/soldering tip).



Introducing the Cap Kit (as an option) to protect a soldering iron tip from shock on the move!

The Cap protects a soldering iron tip from shock on the move. Also, it prevents the tip from being damaged in a toolbox.

• The cap is made of heat-resistant plastic. However, please ensure that the tip is cool enough before putting it on.

Feature page of the product

Cap kit Part No. B5286

＼ Check out the video ／
Easy to install on the soldering iron!
