Model No.	Packing List
Duct Set C1571 (With rectangular nozzle)	Duct, Adapter, Rectangular nozzle, Net, Instruction manual
C1572 (With round nozzle)	Duct, Adapter, Round nozzle, Net, Instruction manual

Specifications





Model No.	FA-430
Power consumption	110 W
Noise level	50 dB (MEDIUM mode)
Max. suction capacity	with single duct : MAX. 4.1 m3/min. (145 cfm) with two ducts : MAX. 4.7 m3/min. (167 cfm)
Filtering efficiency	99.97% 0.3 µm (LOW, MEDIUM mode) 99.96% 0.3 µm (HIGH mode)
Static pressure	1,500 Pa
Duct set (sold separately)	Length of duct : 55 mm dia. × 1.2 m (ESD SAFE)
Dimensions	330 (W) × 366 (H) × 343 (D) mm
Weight	7.5 kg

• Filtering efficiency is an initial value of collection efficiency based on counting method for airborne dust collected by a single plate of filter (unfolded).
• Noise level is measured at a distance of 1 m from the face of unit in an anechoic room.
• Net in duct sets are not protected against electrostatic discharge.

Replacement Parts

	Part No.	Name	Specifications
	A1573	Main filter
	A1572	Pre-filter	Qty: 10
	B3619	Cap

Employing HEPA* filter! (High Efficiency Particulate Air filter)
Suitable for soldering in laboratory or office environment

HEPA filter captures 99.97% of particles greater than 0.3μm

FA-430 provides excellent filtering efficiency, 99.97% of particles greater than 0.3μm, by HEPA filter.

Filter replacement notification function ensures excellent trapping efficiency can be maintained at all times

No matter how sophisticated a fume extractor is, if the filter is not replaced at the right time, it will not be able to give maximum performance. The FA-430 detects the number of fan rotation and notifies the operator of the appropriate time to replace the filter, guaranteeing a comfortable working environment.

• Pre-filter

  When the pre-filter is 80% clogged or has been used for 200 hours, the orange indicator flashes on and off.



• Main filter

  When the 10th pre-filter needs replacing, the orange and red lamps flash on and off.




Quiet operation and powerful suction.

Exhaust noise has been reduced without sacrificing suction performance by the addition of a silencer unit to the exhaust outlet to ensure smooth air outflow. A high-performance motor with 1,500 Pa of static pressure provides powerful suction and quiet operation.

	Noise level dB(A)	Air volume m3/min
HIGH	53	4.7
MEDIUM	50	3.7
LOW	44	2.8

*Values measured when the unit was used with a 60 Hz power supply.

Catch harmful smoke with freestanding ducts and adjustable air volume to suit your working environment

Is your smoke absorber affected by air conditioning? Are you fed up with having to re-adjust ducts after every line change? The FA-430 fume extractor is the answer to your problems.

Airflow adjustment

Three airflow modes are available: High, Medium, and Low. Significantly improve your working environment by using an airflow volume that suits the worksite and the job.

• Low mode: Not easily affected by the surrounding environment. For use in small, quiet locations.
  (For when low-noise operation is a priority.)
• Medium mode: For normal use.
• High mode: For use in locations that are significantly affected by the surrounding environment. (For when suction performance is a priority.)

Freestanding ducts

Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed. Say goodbye forever to ducts that are long, heavy, and hard-to-handle.

	Length	Weight
Duct for FA-430	1.2m	0.6kg

Small photo on left circled in red:
Bends and stretches freely for perfect placement!

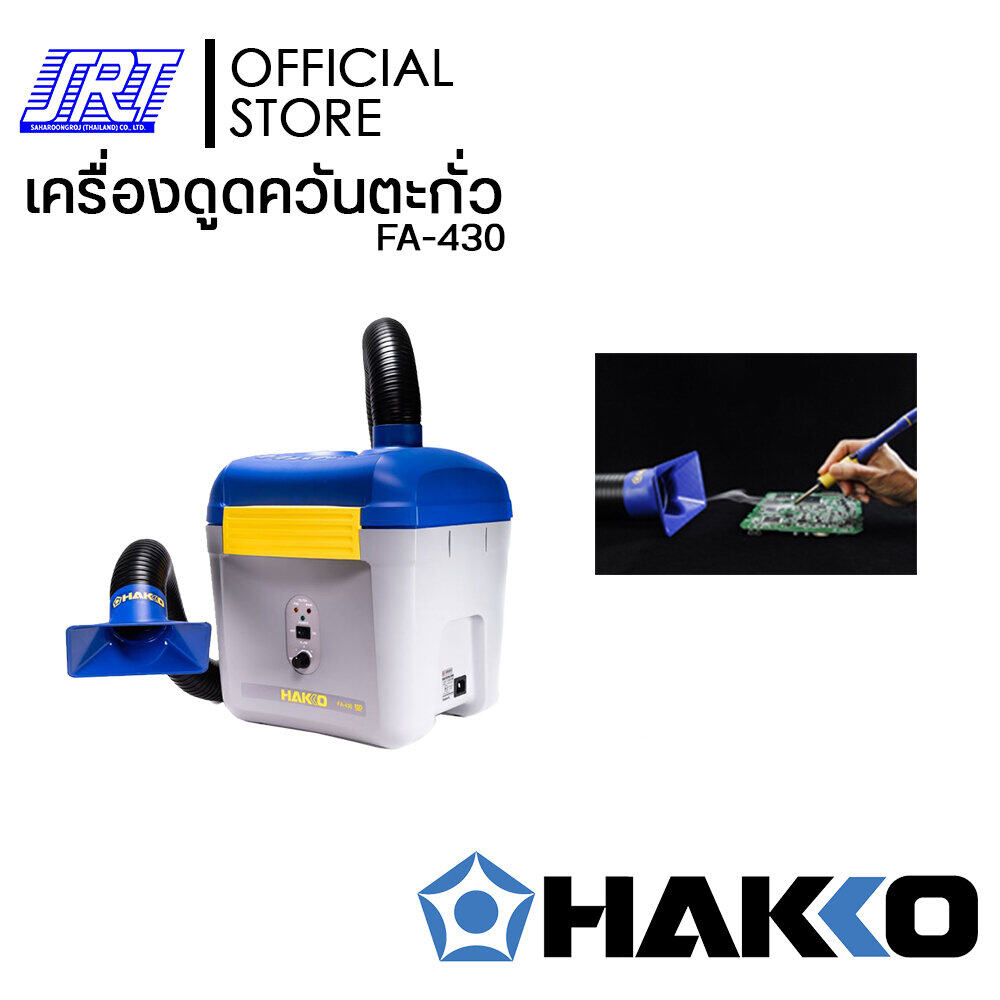

Large photo on left:
Lightweight and compact, the FA-430 weighs only 7.5 kg. Built-in handles allow the fume extractor to be moved easily, facilitating line changeovers.

•

  If the duct is mounted at an angle above the workpiece, it is easily affected by air conditioning

•

  If the duct is mounted directly above, it can be difficult to see the workpiece

•

  Duct is mounted on the worktable to provide excellent suction performance
