Specifications
| Model No. | 980 | 981 | 984 | 985 |
|---|---|---|---|---|
| Power consumption | 20/130 W (While the switch is pushed) | |||
| Heating element | Ceramic heater | |||
| Total length | 205 mm | 160 mm | 205 mm | 160 mm |
| Weight | 48 g | 92 g | 56 g | 100 g |

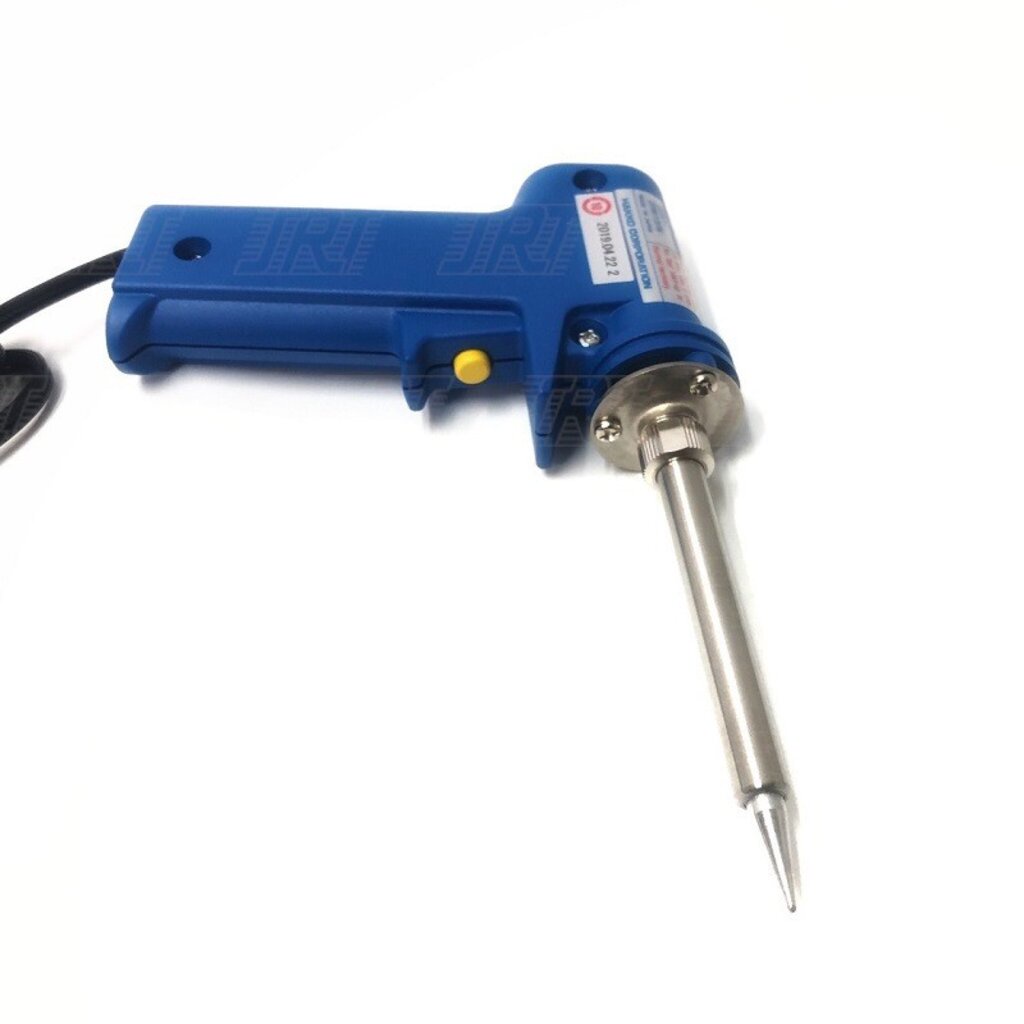

130 W high-speed heatup with a boost switch
20 W when used in normal operation, but can be heated up to 130 W when the boost switch pressed.
Press the boost switch when a large amount of heat is temporarily required; for example, when quick heatup is needed (the unit becomes ready to solder within around 20 sec.) or when soldering relays and connectors.
The boost switch can be used for up to 30 continuous seconds.
Models with useful caps are also available (No.984 and No.985).
No.984/985 are not available in North America.
No.980/981 are not available in Japan.
-
-
984/985 (When capped)
-

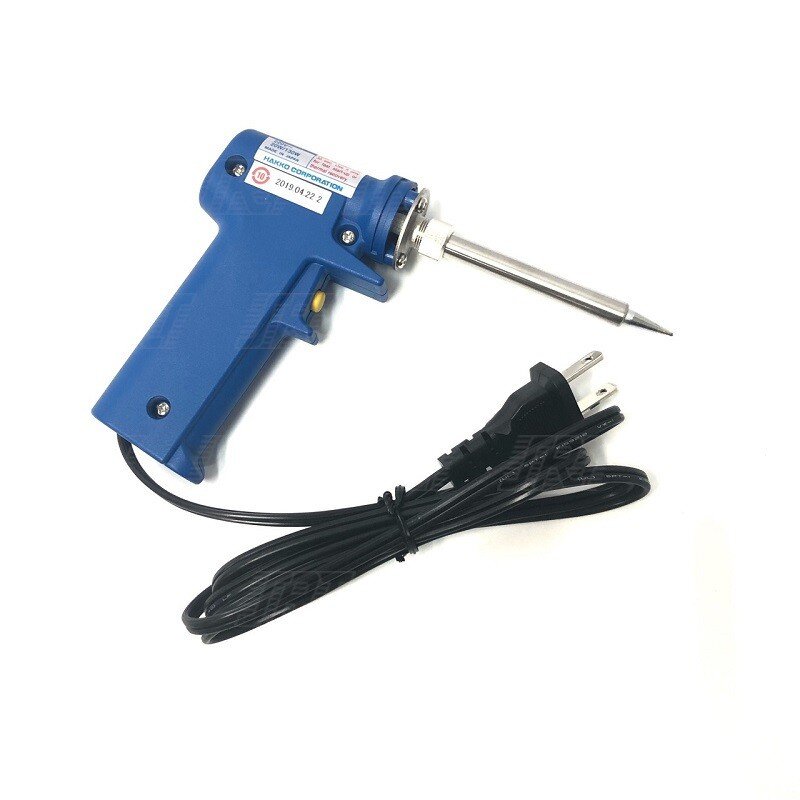

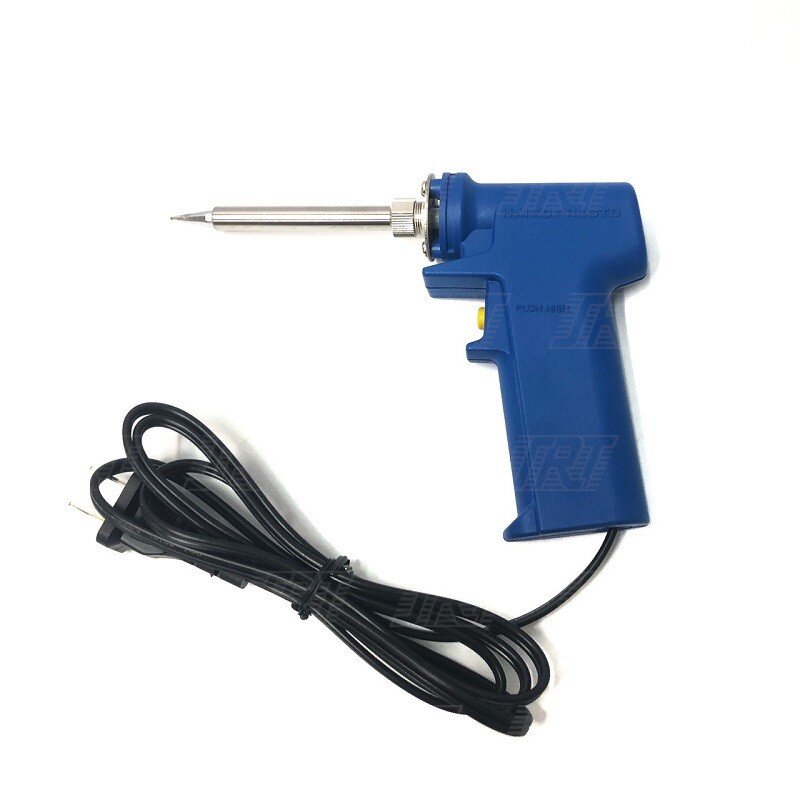

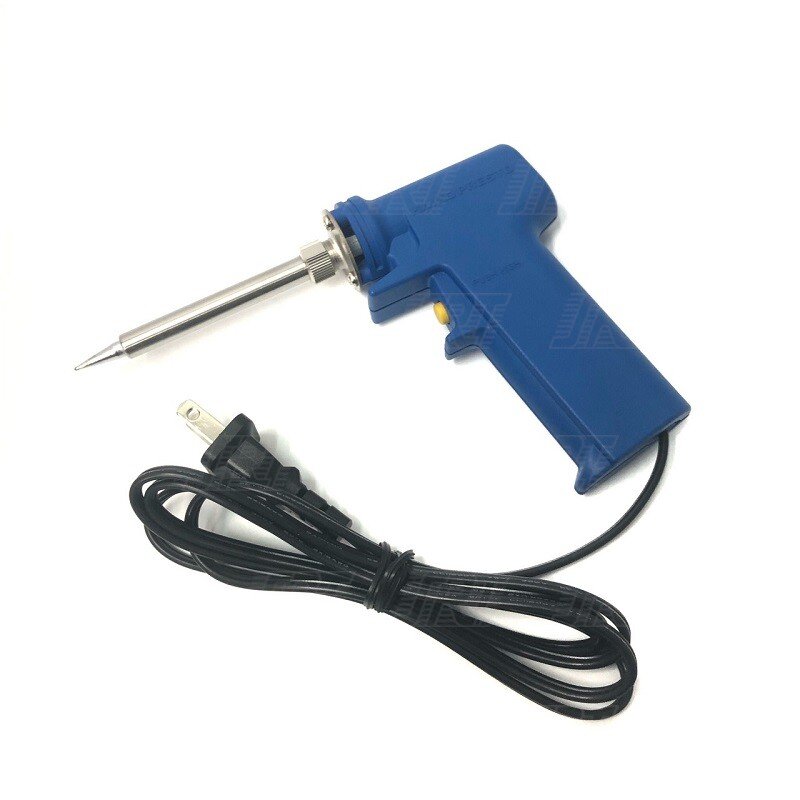

980/981 (Without Cap)
Replacement Parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
A1360 | Heating element for 980/984 | 100V
|
 |
A1361 | Heating element for 980/984 | 110V
|
 |
A1374 | Heating element for 980/984 | 120V
|
 |
A1363 | Heating element for 980/984 | 220V
|
 |
A1364 | Heating element for 980/984 | 230V
|
 |
A1367 | Heating element for 981/985 | 100V
|
 |
A1368 | Heating element for 981/985 | 110V
|
 |
A1375 | Heating element for 981/985 | 120V
|
 |
A1370 | Heating element for 981/985 | 220V
|
 |
A1371 | Heating element for 981/985 | 230V
|
 |
B1157 | Element support pipe |
|
 |
B2240 | Enclosure pipe |
|
 |
B2564 | Enclosure pipe |
|
 |
B1784 | Nut |
|
 |
B2236 | Flange | 2 core
|
 |
B2562 | Cap |
|
 |
B2563 | Adapater |
|
Option
| Part No. | Name | Specifications | |
|---|---|---|---|
 |
FH305-81 | Folding iron holder | With cleaning sponge
|
 |
FH300-81 | Iron holder | With cleaning sponge
|
 |
633-01 | Iron holder | With cleaning wire
|
 |
633-02 | Iron holder | With cleaning sponge
|
