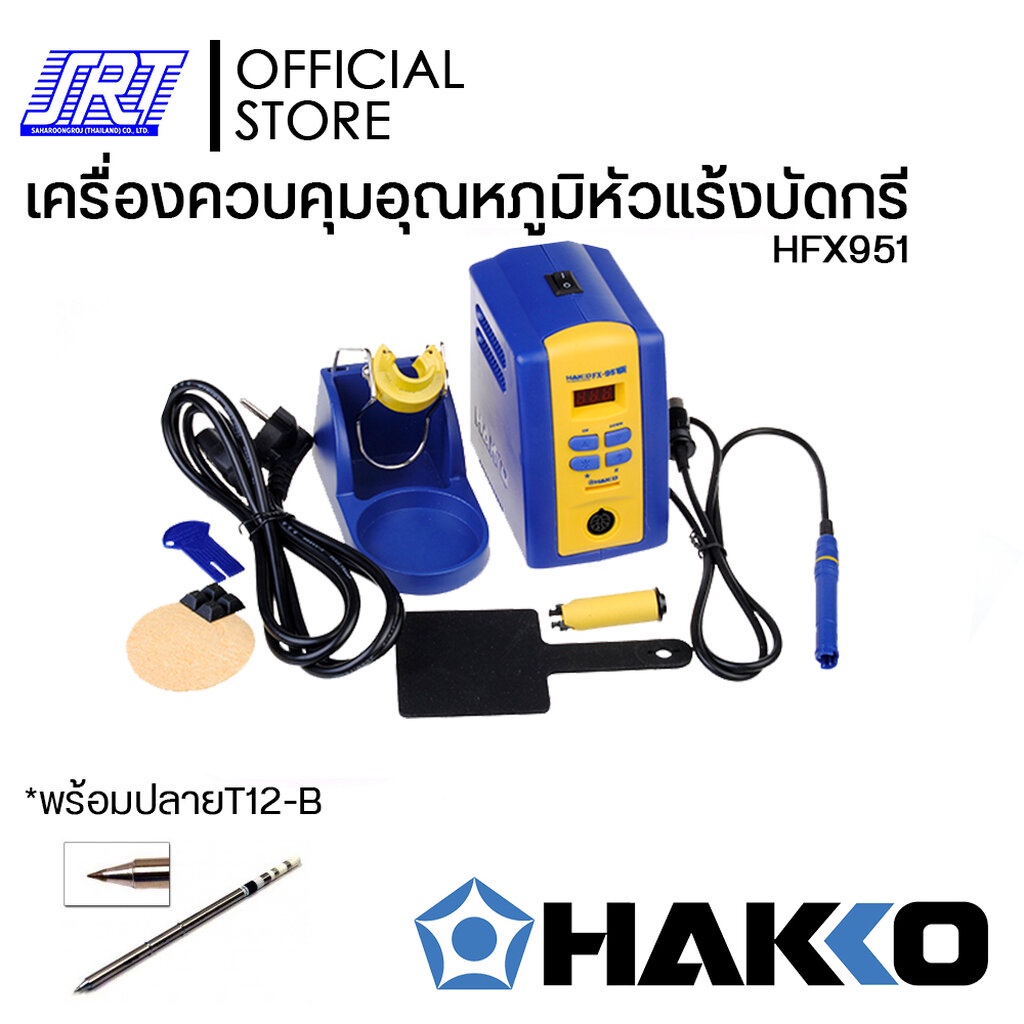

เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
มาเป็นคนแรกที่รีวิวพรีเมี่ยมสินค้านี้
รายละเอียดครบ
(รอ)
ตรงกับหน้าเว็บ
(รอ)
ราคาคุ้มค่า
(รอ)
คุณภาพสินค้า
(รอ)
★ ทางร้านสามารถออกบิล VAT ได้ ★
เงื่อนไข
✔️ก่อนสั่งซื้อสินค้า กรุณาแจ้งแอดมินหรือติดต่อผู้ขายก่อนทุกครั้ง
✔️ กรอกข้อมูลให้ ที่อยู่ เลขที่ผู้เสียภาษี
(หากข้อมูลไม่ถูกต้อง ให้แจ้งภายในเดือนเท่านั้น)
**ในกรณีการออกใบกำกับภาษี ถ้าคุณลูกค้าไม่ได้แจ้งล่วงหน้า ทางร้านจะไม่ออกใบกำกับภาษีย้อนหลังให้นะครับ**
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
POINT
  • Compact high-power thermally-controlled soldering iron
  • Standard model that ensures high thermal recovery needed for lead-free soldering
  • Selectable soldering iron for N2 system or micro soldering as usage at your option

Specifications

Model No. FX-951
Power consumption 75 W
Temperature range 200 to 450℃
Temperature stability ±5℃ at idle temperature



Station

Output voltage AC 24 V
Dimensions 80 (W) × 130 (H) × 131 (D) mm
Weight 1.2 kg



Soldering Iron

Power consumption 70 W (24 V)
Tip to ground resistance <2 Ω
Tip to ground potential <2 mV
Heating element Composite heater
Cord length 1.2 m
Total length 188 mm (with T12-D24 tip)
Weight 30 g (with T12-D24 tip)



  • Total length and weight are measured without cord.

Standard Soldering Iron for Lead-free Soldering

Three types of irons for a variety of soldering work

Included as standard Option Option
Soldering iron
FM-2028

Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.

Thermal Recovery Graph
(The comparison of HAKKO products)
  • Thermal Recovery Graph

    *Click here to enlarge

N2 soldering iron
FM-2026

Improve solderability and wettability with the HAKKO N2 system.
N2 system reduces soldering defects!
*Requires a variety of equipment in addition to the N2 soldering iron. Click here for details.
Micro soldering iron
FM-2032

Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.

*Can also be used with the following stations:
FM-206
FM-203

Carefully designed station

・Our commitment to producing iron holders

The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
It shows HAKKO's commitment to soldering iron base stand which is used 100's of times a day.

Our commitment to producing iron holders

・Three Features of the Soldering Iron FM-2028

  • Interlock mechanism with the iron holder makes setting of the power-save setting easy.
  • Power-save function allows minute-by-minute setting. (up to 30 minutes)
    0-29mins. --- Sleep mode,
    30 mins.--- Auto-power, Shutoff
  • Enclosed type iron holder ensures safety.
FH-2000

Carefully designed iron and tip

・Uses lock-type Sleeve Assembly soldering iron.

  • Lock-type sleeve assembly attaches securely.
  • Click sound ensures you easy and secure tip insertions.

FM-2028
FM-2028

How to remove and insert the tip

The optional FM-2026 and FM-2032 are not lockable.

  • Four-color lineup of the sleeves

・Compositetip

The composite tip is a soldering tip integrated with heating element and sensor. Despite its highly compact design, the tip offers superior thermal responsivity and greatly improved thermal recovery.

・Used in combination with a smoke absorber

Can be used in combination with the HAKKO 490 (Discontinued) smoke cleaner or the HAKKO 494 smoke absorbing system for line-production.

Does not support the FM-2026 or FM-2032.

  • HAKKO 490

    HAKKO 490 (Discontinued)

  • HAKKO 494

    HAKKO 494


Replacement Parts

  Part No. Name Specifications
images:FH200-02 Iron holder FH200-02 Iron holder With cleaning sponge & power-save function

For FM-2027 and FM-2028
images:FH200-01 Iron holder FH200-01 Iron holder With cleaning wire & power-save function

For FM-2027 and FM-2028
images:FM2028-01 FM-2028 FM2028-01 FM-2028 With yellow sleeve assembly, 70W(24V)

Soldering iron only
images:B3253 Connecting cable B3253 Connecting cable


images:B2300 Heat resistant pad B2300 Heat resistant pad


images:B2972 Control card B2972 Control card


images:B3216 Sleeve assembly B3216 Sleeve assembly Yellow

images:A1519 Cleaning sponge A1519 Cleaning sponge Yellow

* Replacement for A1536
For 633, 635, FH-100, FH-400, FH-410
images:A1536 Cleaning sponge A1536 Cleaning sponge Green

* Discontinued/The replacement is "A1519".
images:FM2028-03 FM-2028 FM2028-03 FM-2028

Connector assembly only
images:B3220 Connector cover B3220 Connector cover

For FM-2028


T12 Series

Shape BCM/CM

Shape BC/C

Shape B

Shape D

Shape I

Shape J

Shape K

SMD Type : Shape Quad

  •  Quad

    T12-1201 Quad

    13.6mm x 8.5mm

    For SMD work

  •  Quad

    T12-1202 Quad

    10.3mm x 10.3mm

    For SMD work

  •  Quad

    T12-1203 Quad

    12.8mm x 12.8mm

    For SMD work

  •  Quad

    T12-1204 Quad

    17.9mm x 17.9mm

    For SMD work

  •  Quad

    T12-1205 Quad

    23.4mm x 17.3mm

    For SMD work

  •  Quad

    T12-1206 Quad

    22.5mm x 16.5mm

    For SMD work

  •  Quad

    T12-1207 Quad

    15.5mm x 15.5mm

    For SMD work

  •  Quad

    T12-1208 Quad

    15.8mm x 15.8mm

    For SMD work

  •  Quad

    T12-1209 Quad

    8.4mm x 8.4mm

    For SMD work

SMD Type : Shape Tunnel

  •  Tunnel

    T12-1001 Tunnel

    5.1mm x 4.6mm

    For SMD work

  •  Tunnel

    T12-1002 Tunnel

    5.1mm x 10.4mm

    For SMD work

  •  Tunnel

    T12-1003 Tunnel

    9.5mm x 18.3mm

    For SMD work

  •  Tunnel

    T12-1004 Tunnel

    9.5mm x 15.8mm

    For SMD work

  •  Tunnel

    T12-1005 Tunnel

    9.5mm x 13.2mm

    For SMD work

  •  Tunnel

    T12-1006 Tunnel

    6.9mm x 11.4mm

    For SMD work

  •  Tunnel

    T12-1007 Tunnel

    7.9mm x 18.8mm

    For SMD work

  •  Tunnel

    T12-1008 Tunnel

    19.5mm x 10.2mm

    For SMD work

  •  Tunnel

    T12-1009 Tunnel

    13.4mm x 20.5mm

    For SMD work

  •  Tunnel

    T12-1010 Tunnel

    19.5mm x 12mm

    For SMD work

SMD Type : Shape Spatula

  •  Spatula

    T12-1401 Spatula

    10.4mm

    For SMD work

  •  Spatula

    T12-1402 Spatula

    15.7mm

    For SMD work

  •  Spatula

    T12-1403 Spatula

    21.2mm

    For SMD work

  •  Spatula

    T12-1404 Spatula

    25mm

    For SMD work

  •  Spatula

    T12-1405 Spatula

    32mm

    For SMD work

  •  Spatula

    T12-1406 Spatula

    40mm

    For SMD work

Shape Concave

  •  with V-groove

    T12-1610 with V-groove





  •  with concave

    T12-1612 with concave





T15 Series

Shape BCM/CM

  •  Shape-2BC with indent

    T15-BCM2 Shape-2BC with indent





  •  Shape-3BC with indent

    T15-BCM3 Shape-3BC with indent





Shape BC/C

  •  Shape-1.2BC

    T15-BC12 Shape-1.2BC





  •  Shape-1.5BC

    T15-BC15 Shape-1.5BC





  •  Shape-2.8BC

    T15-BC28 Shape-2.8BC





  •  Shape-1BC

    T15-BC1 Shape-1BC





  •  Shape-2BC

    T15-BC2 Shape-2BC





  •  Shape-3BC

    T15-BC3 Shape-3BC





  •  Shape-1BC

    T15-BCF1 Shape-1BC

    Tinned cut surface only



  •  Shape-2BC

    T15-BCF2 Shape-2BC

    Tinned cut surface only



  •  Shape-3BC

    T15-BCF3 Shape-3BC

    Tinned cut surface only



  •  Shape-1C

    T15-C1 Shape-1C





  •  Shape-4C

    T15-C4 Shape-4C





  •  Shape-2C

    T15-CF2 Shape-2C

    Tinned cut surface only



  •  Shape-3C

    T15-CF3 Shape-3C

    Tinned cut surface only



  •  Shape-4C

    T15-CF4 Shape-4C

    Tinned cut surface only



  •  Shape-0.4SBC

    T15-SBC04 Shape-0.4SBC



    For narrow-pitch soldering

Shape B

  •  Shape-B

    T15-B Shape-B





  •  Shape-0.5B

    T15-B2 Shape-0.5B





  •  Shape-0.7B

    T15-B3 Shape-0.7B





  •  Shape-0.4B

    T15-B4 Shape-0.4B





  •  Shape-BL Long

    T15-BLL Shape-BL Long





Shape D

  •  Shape-0.8D

    T15-D08 Shape-0.8D





  •  Shape-1.2D

    T15-D12 Shape-1.2D





  •  Shape-1.6D

    T15-D16 Shape-1.6D





  •  Shape-2.4D

    T15-D24 Shape-2.4D





  •  Shape-3.2D Long

    T15-DL32 Shape-3.2D Long





  •  Shape-4D

    T15-D4 Shape-4D





  •  Shape-5.2D

    T15-D52 Shape-5.2D





  •  Shape-5.2D Long

    T15-DL52 Shape-5.2D Long





  •  Shape-2D

    T15-D2 Shape-2D





  •  Shape-4D Long

    T15-DL4 Shape-4D Long





  •  Shape-3.2D

    T15-D32 Shape-3.2D





  •  Shape-1.5XD

    T15-XD15 Shape-1.5XD





Shape I

  •  Shape-I

    T15-I Shape-I





  •  Shape-IL

    T15-IL Shape-IL





  •  Shape-ILS

    T15-ILS Shape-ILS





Shape J

  •  Shape-0.2J

    T15-J02 Shape-0.2J





  •  Shape-0.2JL

    T15-JL02 Shape-0.2JL





  •  Shape-0.2JS

    T15-JS02 Shape-0.2JS





  •  Shape-0.8JD

    T15-JD08 Shape-0.8JD





  •  Shape-1.4JD

    T15-JD14 Shape-1.4JD





  •  Shape-1.6JD

    T15-JD16 Shape-1.6JD





Shape K

  •  Shape-K

    T15-K Shape-K





  •  Shape-KF

    T15-KF Shape-KF





  •  Shape-KL

    T15-KL Shape-KL



    For drag soldering for left-handed

  •  Shape-KU

    T15-KU Shape-KU





SMD Type : Shape Quad

  •  Quad

    T15-1201 Quad

    13.6mm x 8.5mm

    For SMD work

  •  Quad

    T15-1202 Quad

    10.3mm x 10.3mm

    For SMD work

  •  Quad

    T15-1203 Quad

    12.8mm x 12.8mm

    For SMD work

  •  Quad

    T15-1204 Quad

    17.9mm x 17.9mm

    For SMD work

  •  Quad

    T15-1205 Quad

    23.4mm x 17.3mm

    For SMD work

  •  Quad

    T15-1206 Quad

    22.5mm x 16.5mm

    For SMD work

  •  Quad

    T15-1207 Quad

    15.5mm x 15.5mm

    For SMD work

  •  Quad

    T15-1208 Quad

    15.8mm x 15.8mm

    For SMD work

  •  Quad

    T15-1209 Quad

    8.4mm x 8.4mm

    For SMD work

  •  Quad

    T15-1210 Quad

    15.4mm x 12.8mm

    For SMD work

SMD Type : Shape Tunnel

  •  Tunnel

    T15-1001 Tunnel

    5.1mm x 4.6mm

    For SMD work

  •  Tunnel

    T15-1002 Tunnel

    5.1mm x 10.4mm

    For SMD work

  •  Tunnel

    T15-1003 Tunnel

    9.5mm x 18.3mm

    For SMD work

  •  Tunnel

    T15-1004 Tunnel

    9.5mm x 15.8mm

    For SMD work

  •  Tunnel

    T15-1005 Tunnel

    9.5mm x 13.2mm

    For SMD work

  •  Tunnel

    T15-1006 Tunnel

    6.9mm x 11.4mm

    For SMD work

  •  Tunnel

    T15-1007 Tunnel

    7.9mm x 18.8mm

    For SMD work

  •  Tunnel

    T15-1008 Tunnel

    19.5mm x 10.2mm

    For SMD work

  •  Tunnel

    T15-1009 Tunnel

    13.4mm x 20.5mm

    For SMD work

  •  Tunnel

    T15-1010 Tunnel

    19.5mm x 12mm

    For SMD work

SMD Type : Shape Spatula

  •  Spatula

    T15-1401 Spatula

    10.4mm

    For SMD work

  •  Spatula

    T15-1402 Spatula

    15.7mm

    For SMD work

  •  Spatula

    T15-1403 Spatula

    21.2mm

    For SMD work

  •  Spatula

    T15-1406 Spatula

    40mm

    For SMD work

Shape R

  •  Shape-2.0R

    T15-R20 Shape-2.0R





  •  Shape-2.3R

    T15-R23 Shape-2.3R





  •  Shape-2.7R

    T15-R27 Shape-2.7R





  •  Shape-3.4R

    T15-R34 Shape-3.4R





  •  Shape-4.8R

    T15-R48 Shape-4.8R





Shape SB

  •  Shape-0.2SB

    T15-SB02 Shape-0.2SB



    For narrow-pitch soldering

  •  Shape-0.3SB

    T15-SB03 Shape-0.3SB



    For narrow-pitch soldering

  •  Shape-0.5SB

    T15-SB05 Shape-0.5SB



    For narrow-pitch soldering

  •  Shape-0.8SB

    T15-SB08 Shape-0.8SB



    For narrow-pitch soldering

  •  Shape-0.4SBS

    T15-SBS04 Shape-0.4SBS



    For narrow-pitch soldering

  •  Shape-0.7SBS

    T15-SBS07 Shape-0.7SBS



    For narrow-pitch soldering

Special Applications Type

  •  Shape-Long reach chisel

    T15-1603 Shape-Long reach chisel



    For special applications

  •  Shape-Long reach bent chisel

    T15-1605 Shape-Long reach bent chisel



    For special applications


Packing List

Model No. Packing List
FX-951 FX-951
  • Station
  • Handpiece (FM-2028*)
  • Iron holder (FH-200**)
  • Card
  • Heat resistant pad
  • Power cord
  • Connecting cable
  • Instruction manual
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เครื่องควบคุมอุณหภูมิหัวแร้งบัดกรี FX951 | HFX951-55 HAKKO | แบบกดปุ่มปรับอุณหภูมิหัวแร้ง | ของแท้100% | (**แถมT12-B**)
เงื่อนไขอื่นๆ
Tags

ช้อปปิ้งได้อย่างมั่นใจ ปลอดภัยทุกการชำระเงิน

มั่นใจได้ทันทีเมื่อคุณช้อปผ่าน

ก้าวสู่ยุคใหม่แห่งการช้อปปิ้งออนไลน์อย่างปลอดภัย ด้วยระบบรับชำระเงิน LnwPay ที่เป็นตัวกลางแทนร้านค้า ทำให้เราสามารถคุ้มครองและป้องกันการทุจริตฉ้อโกงได้ทั้งผู้ซื้อและผู้ขาย

ทำไม LnwPay ถึงปลอดภัย
ดูรายละเอียดเพิ่มเติม

วิธีการสั่งซื้อสินค้า

Step 1: ช้อปปิ้งอย่างมั่นใจกับร้านค้าที่มีสัญลักษณ์ LnwPay

ขั้นตอนที่ 1

ช้อปปิ้งอย่างมั่นใจ กับร้านค้าที่มีสัญลักษณ์ LnwPay

Step 2: ชำระเงินง่ายๆ หลากหลายช่องทาง ไม่ว่าจะโอนเงิน ชำระออนไลน์

ขั้นตอนที่ 2

ชำระเงินง่ายๆ หลากหลายช่องทาง
ไม่ว่าจะโอนเงินหรือชำระออนไลน์

Step 3: รอแป๊บเดียว เดี๋ยวของก็มาชัวร์ถ้ามีปัญหา ติดต่อเราขอคืนเงิน

ขั้นตอนที่ 3

รอแป๊บเดียว เดี๋ยวของก็มาชัวร์ ถ้ามีปัญหา ติดต่อเราขอคืนเงิน

พิเศษ รับคะแนนสะสม LnwPoints คืนทันที
เพียงกลับมารีวิวการสั่งซื้อของคุณที่ LnwPay รับคะแนนคืนทันที สามารถนำไปใช้เป็นส่วนลดในการสั่งซื้อกับร้านค้าที่มีสัญลักษณ์ LnwPay ในครั้งต่อไป คะแนนสะสม LnwPoints คืออะไร
ขณะนี้ร้านค้าเปลี่ยนมาใช้ระบบรับชำระเงินผ่าน LnwPay กรุณาตรวจสอบข้อมูลวิธีการชำระเงินใหม่อีกครั้ง รายละเอียดเพิ่มเติม

ช่องทางชำระเงินระบบรับชำระเงิน LnwPay

ติดต่อ / สอบถาม

**กรุณาเลือกช่องทางติดต่อตามข้อสงสัยของคุณ ในกรณีที่คุณไม่สามารถติดต่อเจ้าของร้านได้ สามารถติดต่อมายังทีมงาน LnwPay แล้วเราจะช่วยเหลือคุณจนถึงที่สุด

ติดต่อเจ้าของร้าน

เรื่องที่ติดต่อผ่านร้านค้า

  • รายละเอียดสินค้า
  • สต๊อกสินค้า
  • ระยะเวลาการจัดส่ง
saleonline@srt.co.th
ติดต่อ

เรื่องที่ติดต่อผ่าน

  • วิธีการสั่งซื้อสินค้า
  • ชำระเงิน
  • แจ้งปัญหา
support@LnwPay.com
มาเป็นคนแรกที่รีวิวพรีเมี่ยมสินค้านี้
มาเป็นคนแรกที่รีวิวพรีเมี่ยมสินค้านี้ให้คนอื่นรับรู้ แถมรับคะแนนสะสม LnwPoints ใช้เป็นส่วนลดในการสั่งซื้อครั้งต่อไป
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
ร้านSaharoongroj
Saharoongroj
บริษัท สหรุ่งโรจน์ (ประเทศไทย) จำกัด SAHAROONGROJ (THAILAND) CO., LTD. มุ่งเน้น ความซื่อสัตย์ที่จะนำสินค้าสู่มือลูกค้าอย่างมีประสิทธิภาพ ⭐️เปิดให้บริการมาแล้วมากกว่า 60 ปี เป็นตัวแทนจำหน่าย HAKKO รายเดียวในประเทศไทย และจำหน่ายสินค้าอุตสาหกรรมแท้ทุกยี่ห้อ เช่น หัวแร้งบัดกรี Hakko จากญี่ปุ่น. คีม Piergiacomi จากอิตาลี🇮🇹, ท่อหด Woer จากจีน ฯลฯ มีหน้าร้าน สามารถออกใบกำกับภาษีได้ จัดส่งรวดเร็ว ได้ของแน่นอน
เบอร์โทร : 087-826-3443
อีเมล : saleonline@srt.co.th
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
สินค้าที่ดูล่าสุด
ดูสินค้าทั้งหมดในร้าน
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้

TOP เลื่อนขึ้นบนสุด

หมวดหมู่

HAKKO [384]

สมาชิก

3 คน พอใจร้านนี้ 100%
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
87 คนเป็นสมาชิกร้านนี้
พูดคุย-สอบถาม
